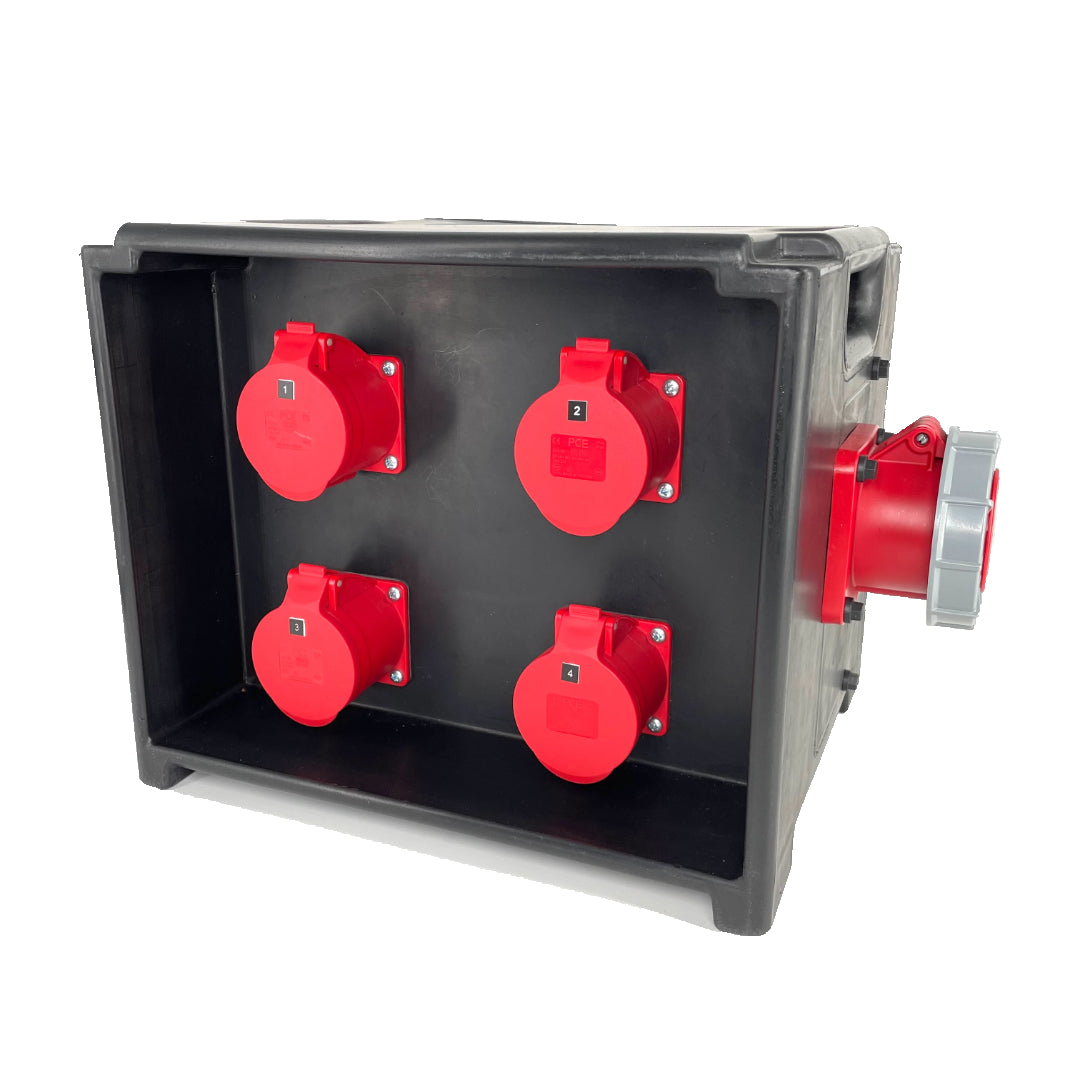

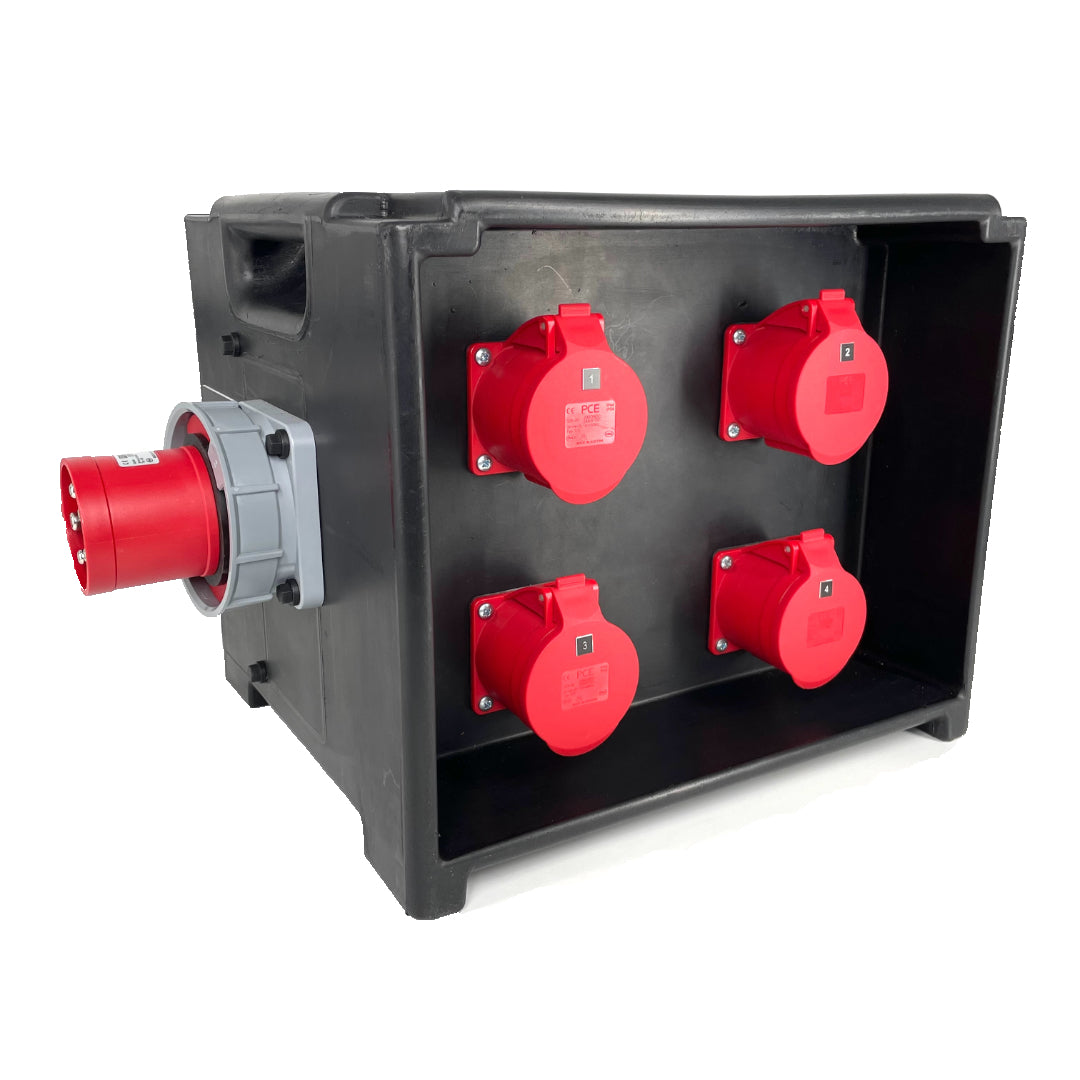

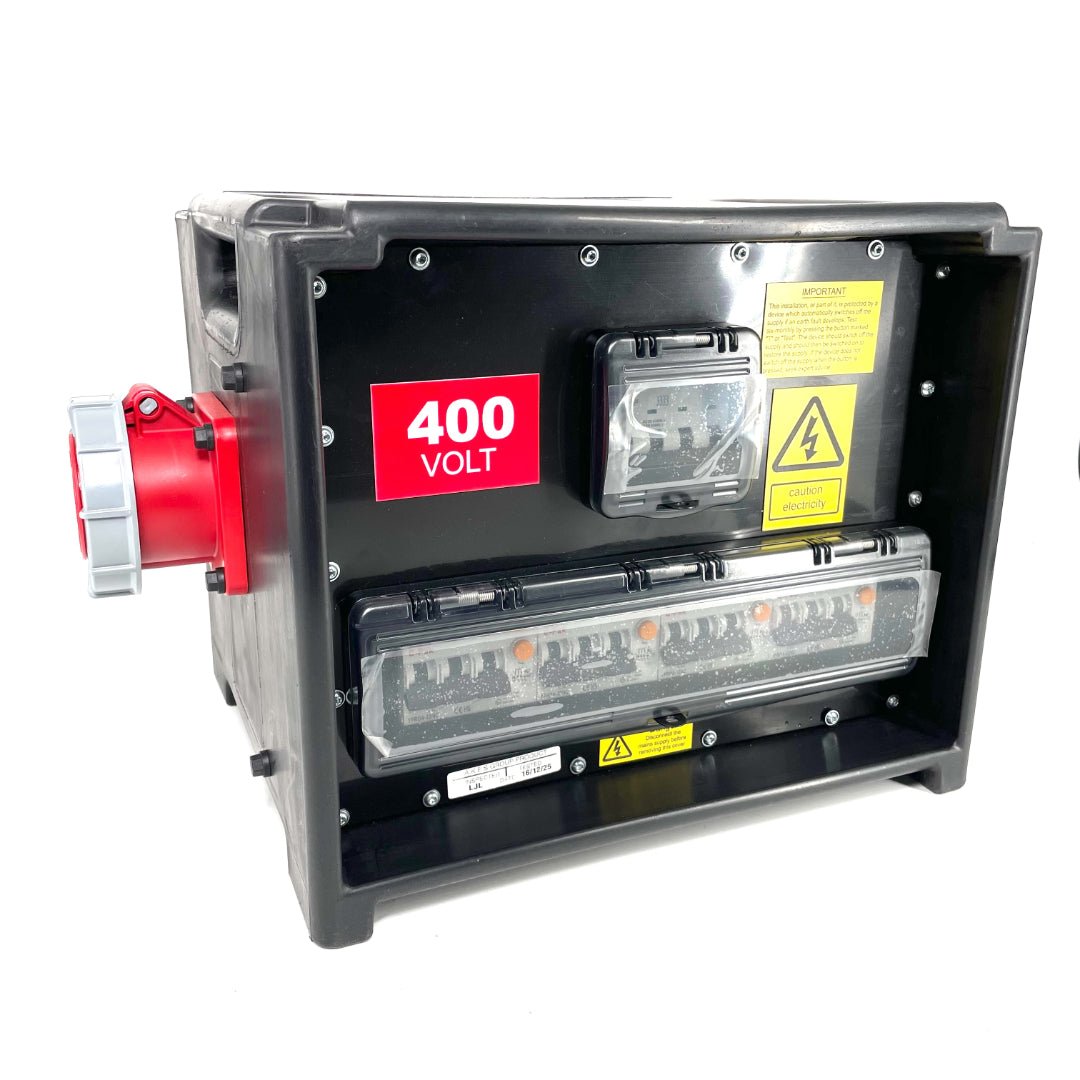

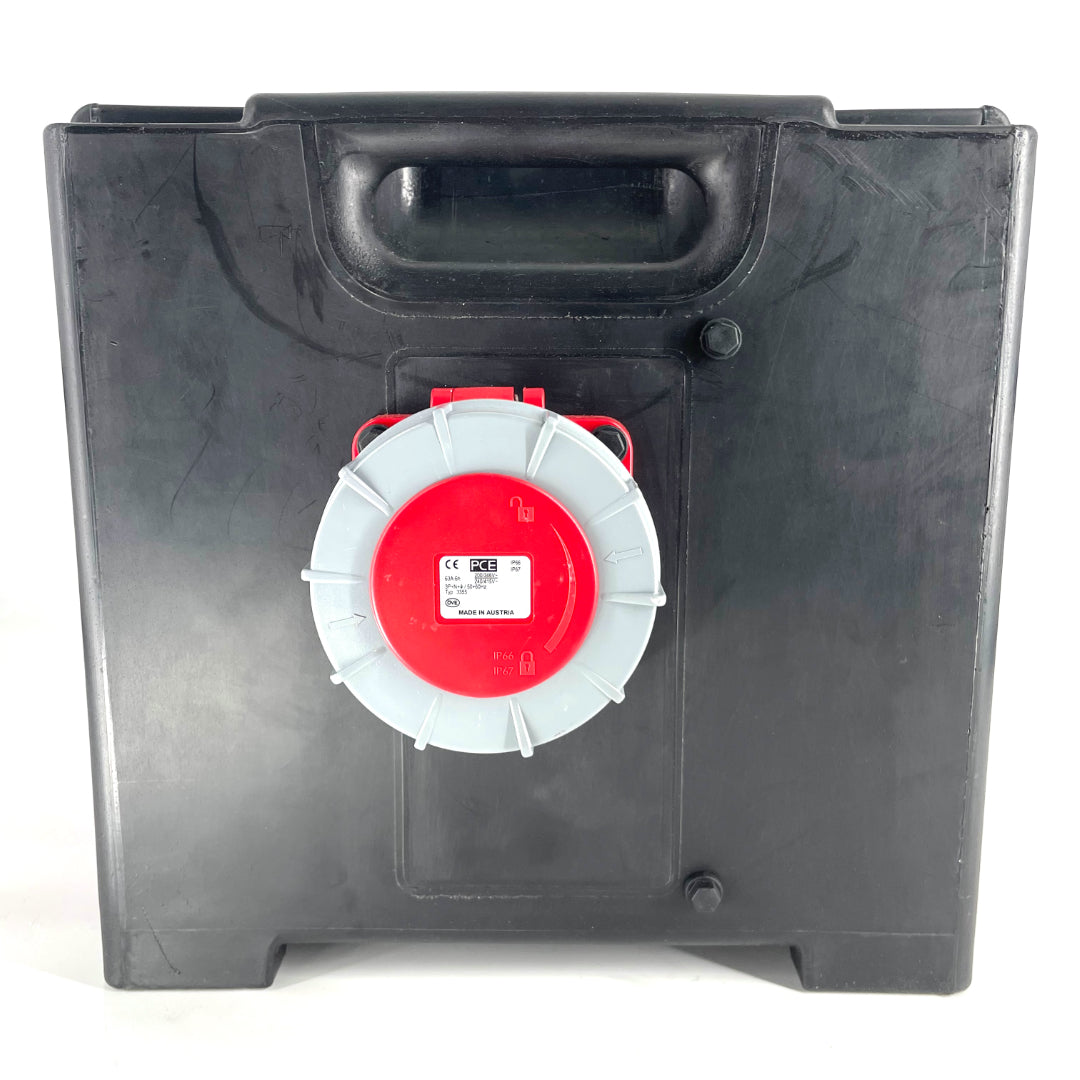

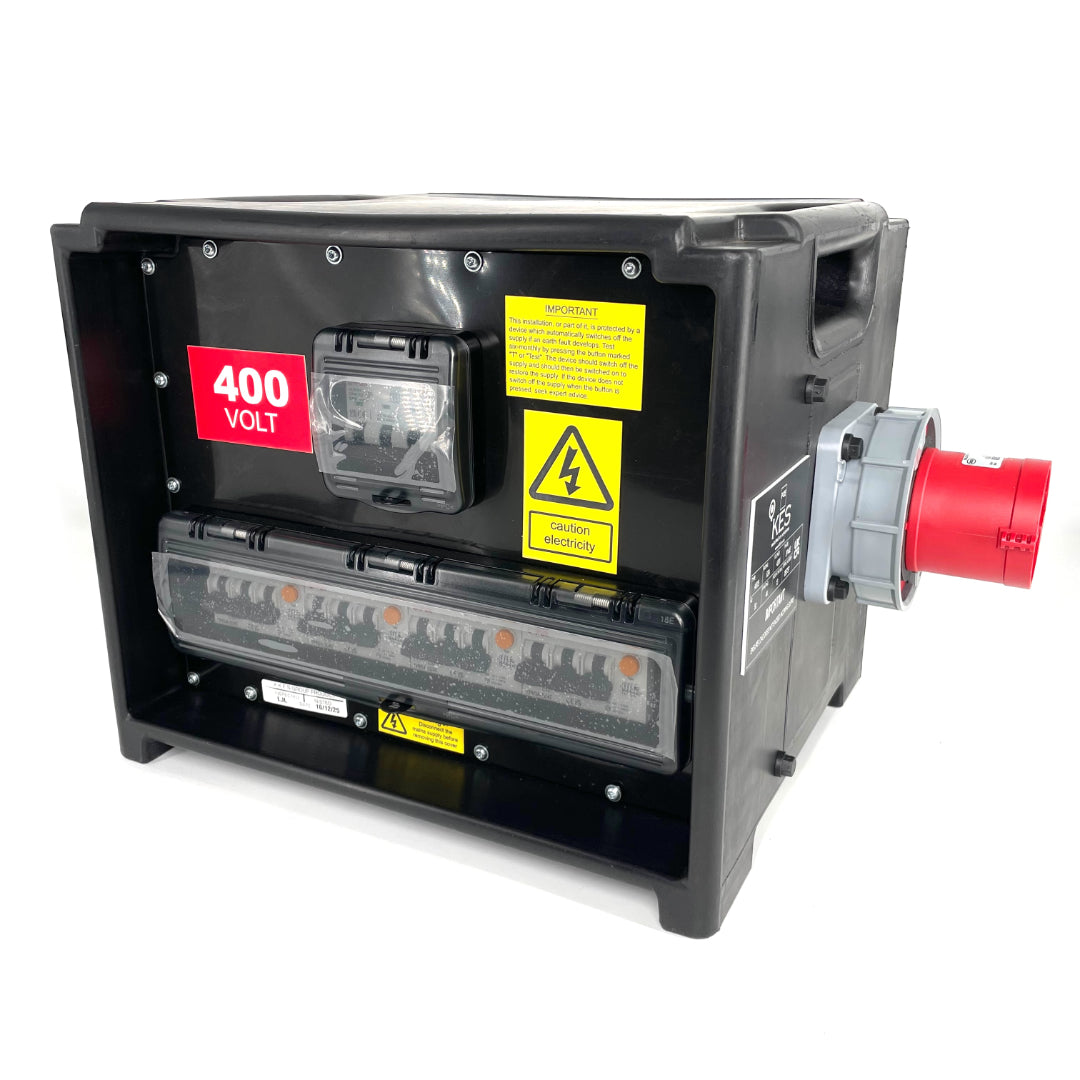

PCE MERZ A805 Distribution Box 63A 400V > 1x 63A 400V, 4x 32A 400V - MCB/RCBOs

PCE MERZ A805 Power Distribution Board - 63 Amp 415V Three Phase to 1x 63A 415V Three Phase (Pass Through) and 4x 32A 415V Three Phase Sockets

Stackable box design made with shock-resistant polyamide. Durable construction with clear window for access to circuit breakers.

Compact event power distro with MCB and RCBO protection. See our power distribution unit circuit breaker protection types page for more information.

IP44 waterproof rating for outdoor use. See our IP ratings page for more information.

Made in the UK, these heavy duty power distribution units are suitable for all industrial machinery, engineering, welding, event, marquee, catering, commercial, site power, workshop, and power distribution applications.

Specifications:

• Input: 63A 400V 5 Pin 3P+N+E Inlet
• Outputs:
• 1 x 63A 400V 5 Pin 3P+N+E Socket (Pass Through)
• 4 x 32A 400V 5 Pin 3P+N+E Sockets
• Protection:
• 1 x 63A 4-Pole Type C MCB (protecting 63A 400V inlet)
• 4 x 32A 30mA 4-Pole Type C RCBO (one per 32A 400V output)
• IP Rating: IP44

• MPN: A805
