PCE MERZ Distribution Box 125A 400V > 1x 63A 400V + 6x 32A 230V + 12x 16A 230V - RCBOs

PCE MERZ Power Distribution Board - 125 Amp 415V Three Phase to 1 x 63A 415V Three Phase,  6 x 32 Amp 240V Single Phase, and 12 x 16 Amp 240V Single Phase Sockets

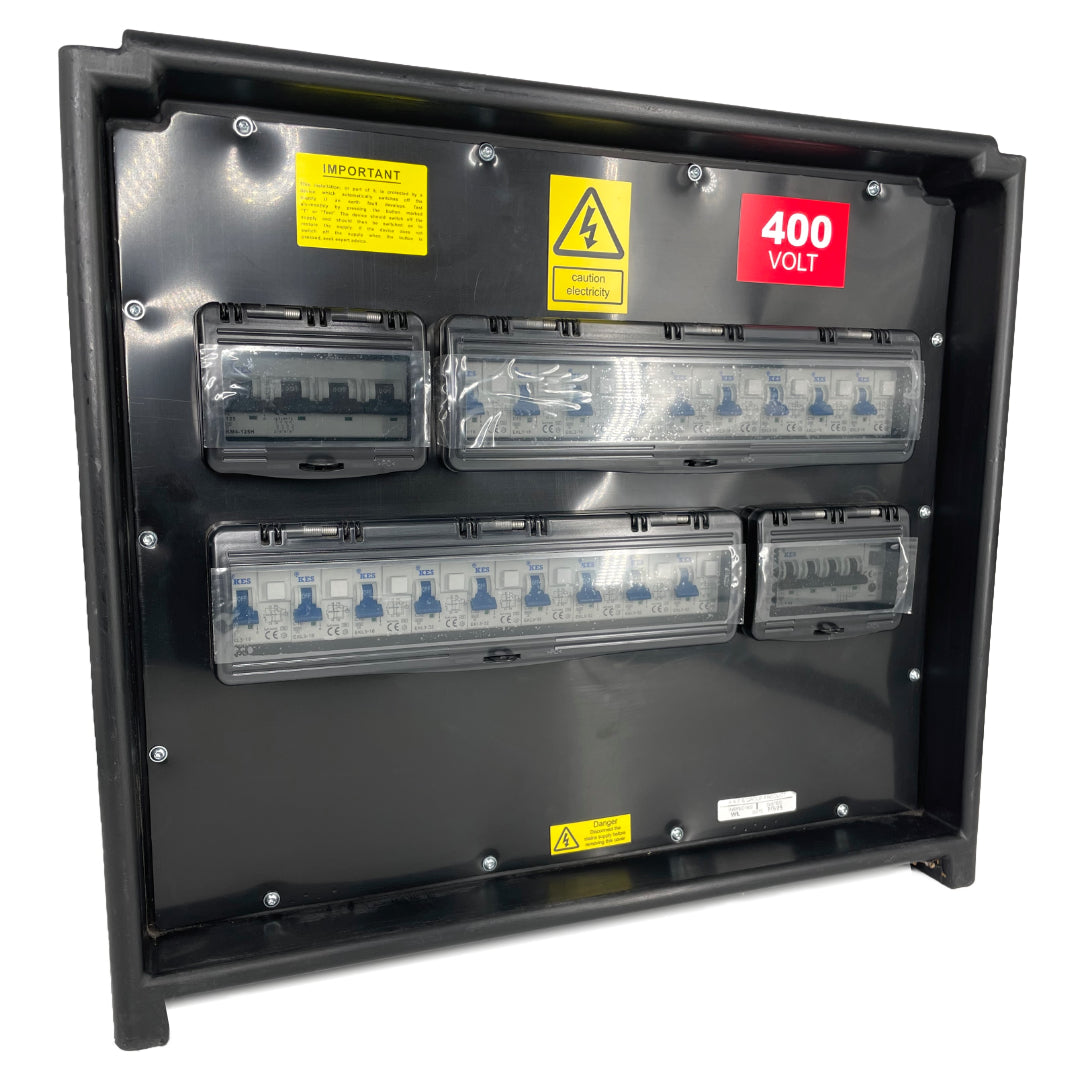

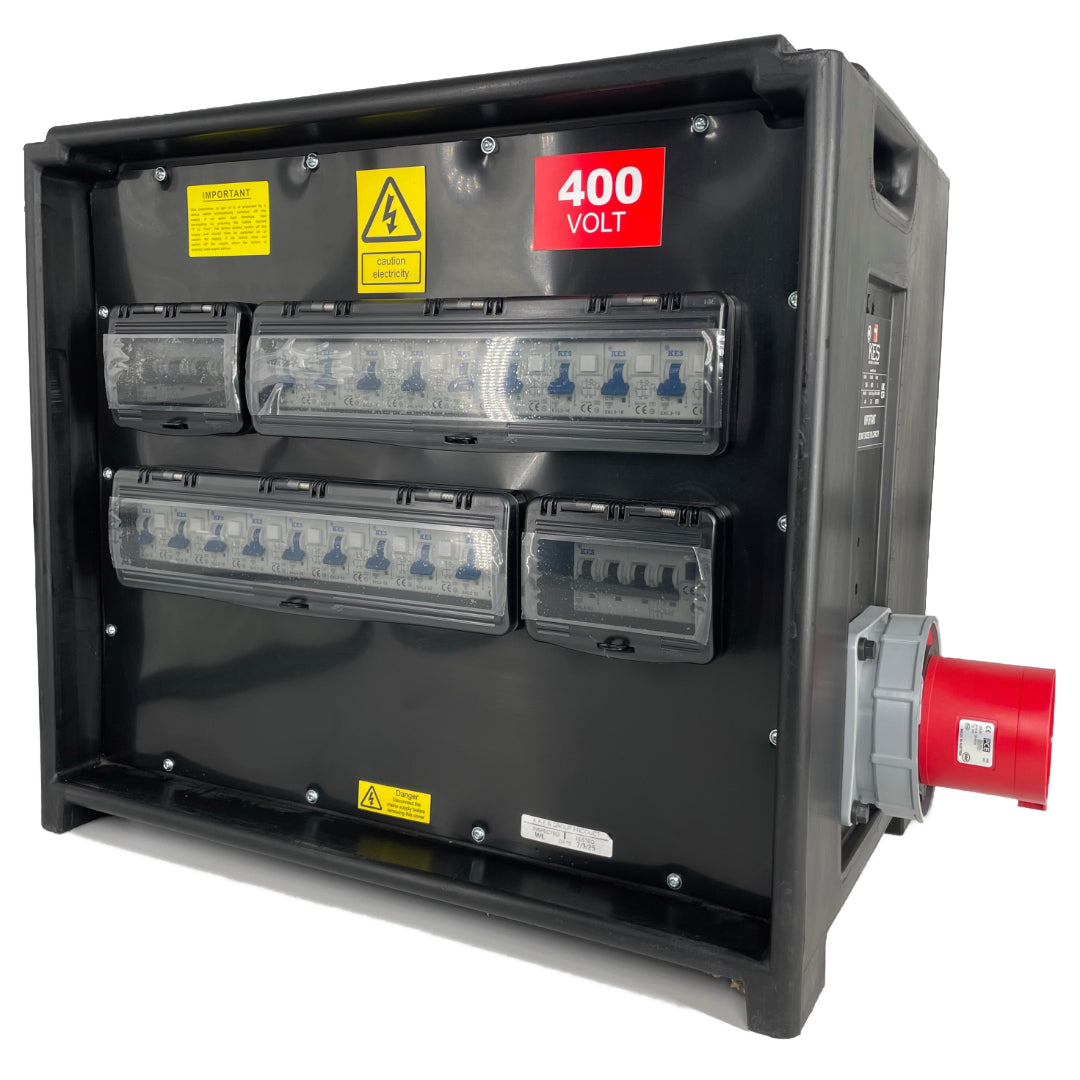

Stackable box design made with shock-resistant polyamide. Durable construction with clear window for access to circuit breakers.

Compact event power distro with RCBO protection. See our power distribution unit circuit breaker protection types page for more information.

IP44 waterproof rating for outdoor use. See our IP ratings page for more information.

Made in the UK, these heavy duty power distribution units are suitable for all industrial machinery, engineering, welding, event, marquee, catering, commercial, site power, workshop, and power distribution applications.

Specifications:

• Input: 125A 400V 5 Pin 3P+N+E Inlet
• Outputs:

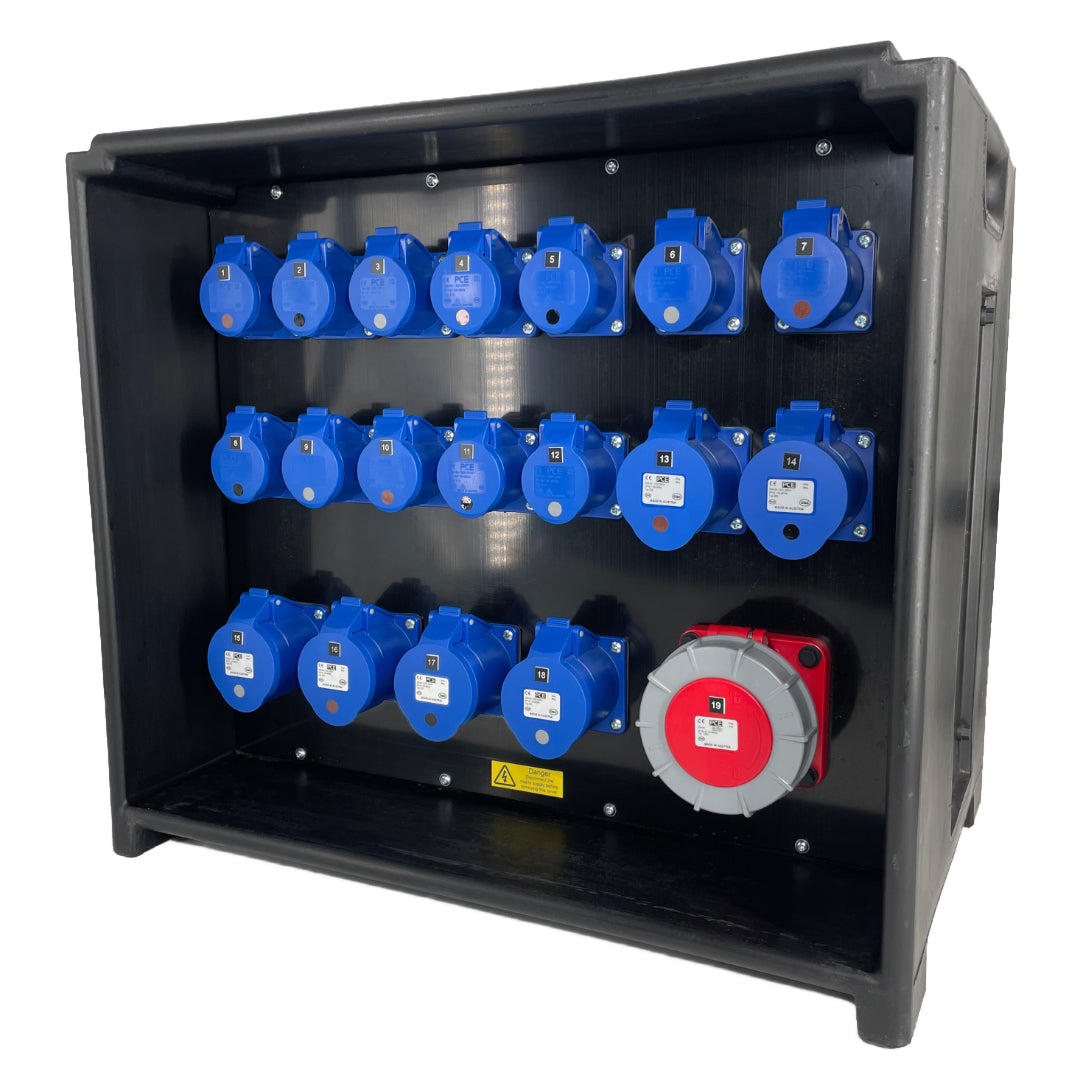

• 1 x 63A 400V 5 Pin 3P+N+E Socket
• 6 x 32A 230V 3 Pin 2P+E Sockets
• 12 x 16A 230V 3 Pin 2P+E Sockets
• Protection:
• 1 x 125A 4-Pole Type C MCB (protecting 125A 400V inlet)
• 1 x 63A 30mA 4-Pole Type C RCBO (one per 63A 400V output)
• 6 x 32A 30mA 2-Pole Type C RCBO (one per 32A 230V output)
• 12 x 16A 30mA 2-Pole Type C RCBO (one per 16A 230V output)
• IP Rating: IP44

• MPN: A795
