PCE MERZ 63A 415V Distribution Box 3x32A + 6x16A 240V Out RCBOs (A80)

A80

Price incudes VAT

PCE MERZ Power Distribution Board - 63 Amp 400V Three Phase to 3 x 32 Amp and 6 x 16 Amp 230V Single Phase Sockets.

IP44 Stackable with carry handles. Durable plastic construction with clear window for access to circuit breakers.

All 16A and 32A outlets are protected by individual C type dual pole RCBOs.

Compact distro perfect for events use.

Specifications:

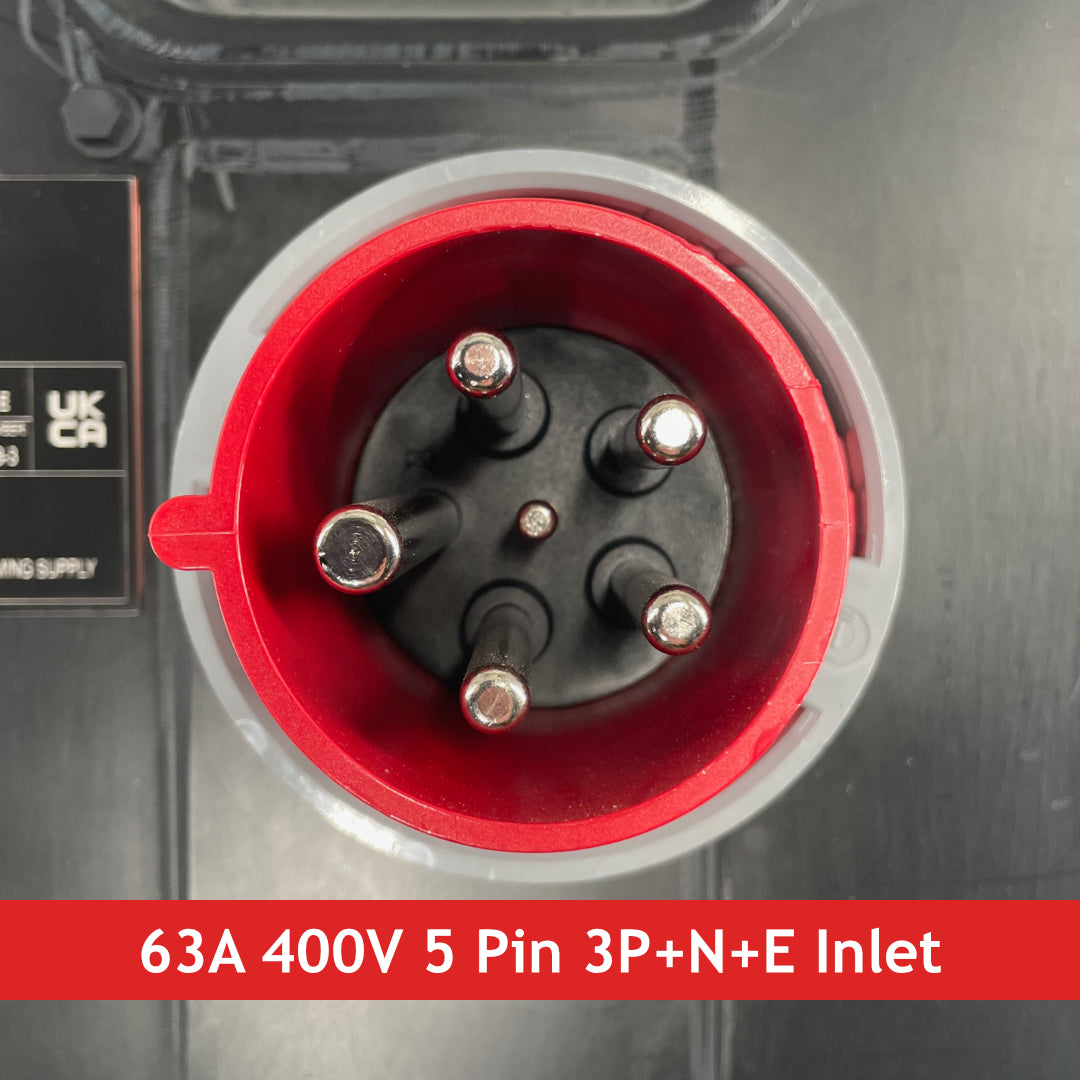

Input: 63A 400V 5 Pin 3P+N+E

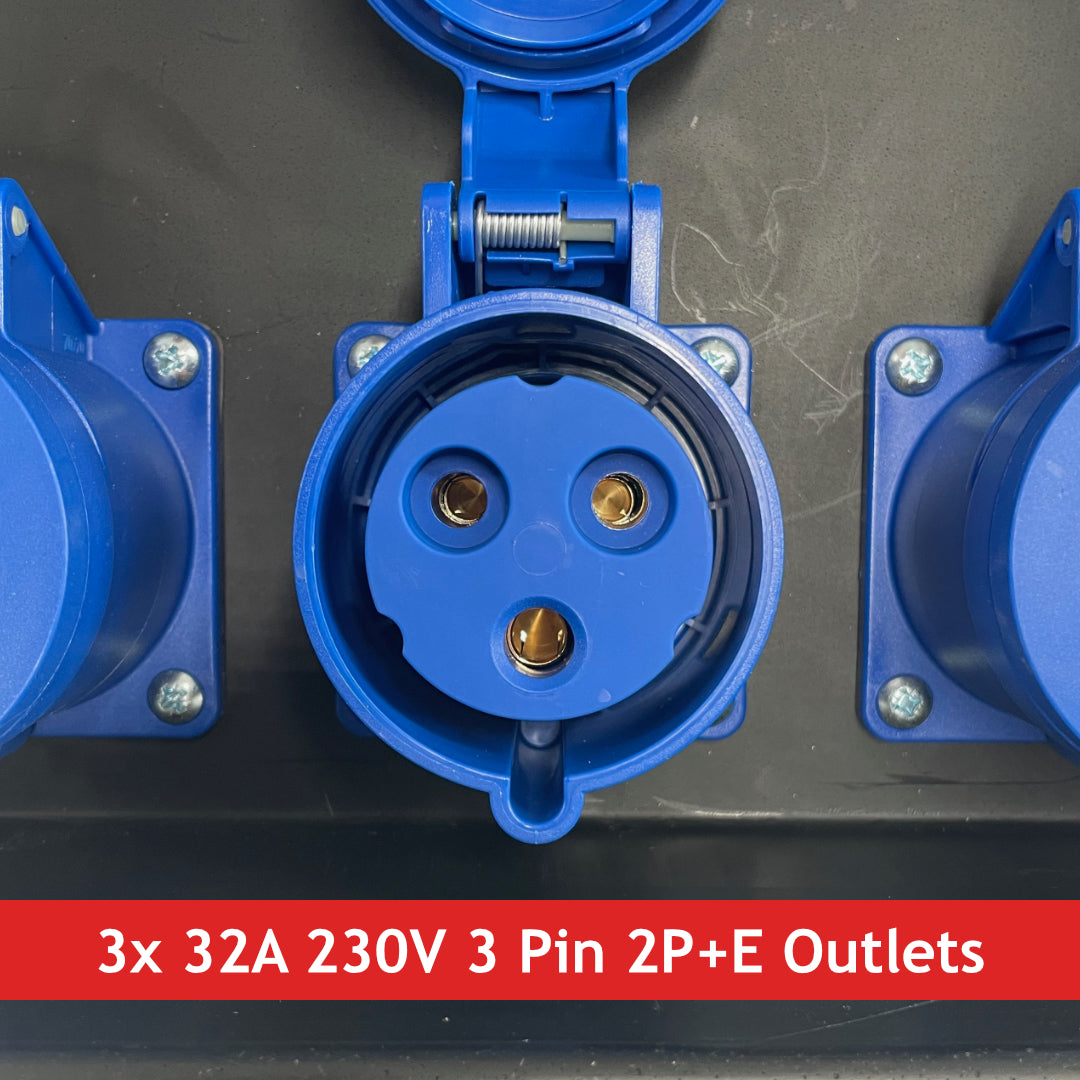

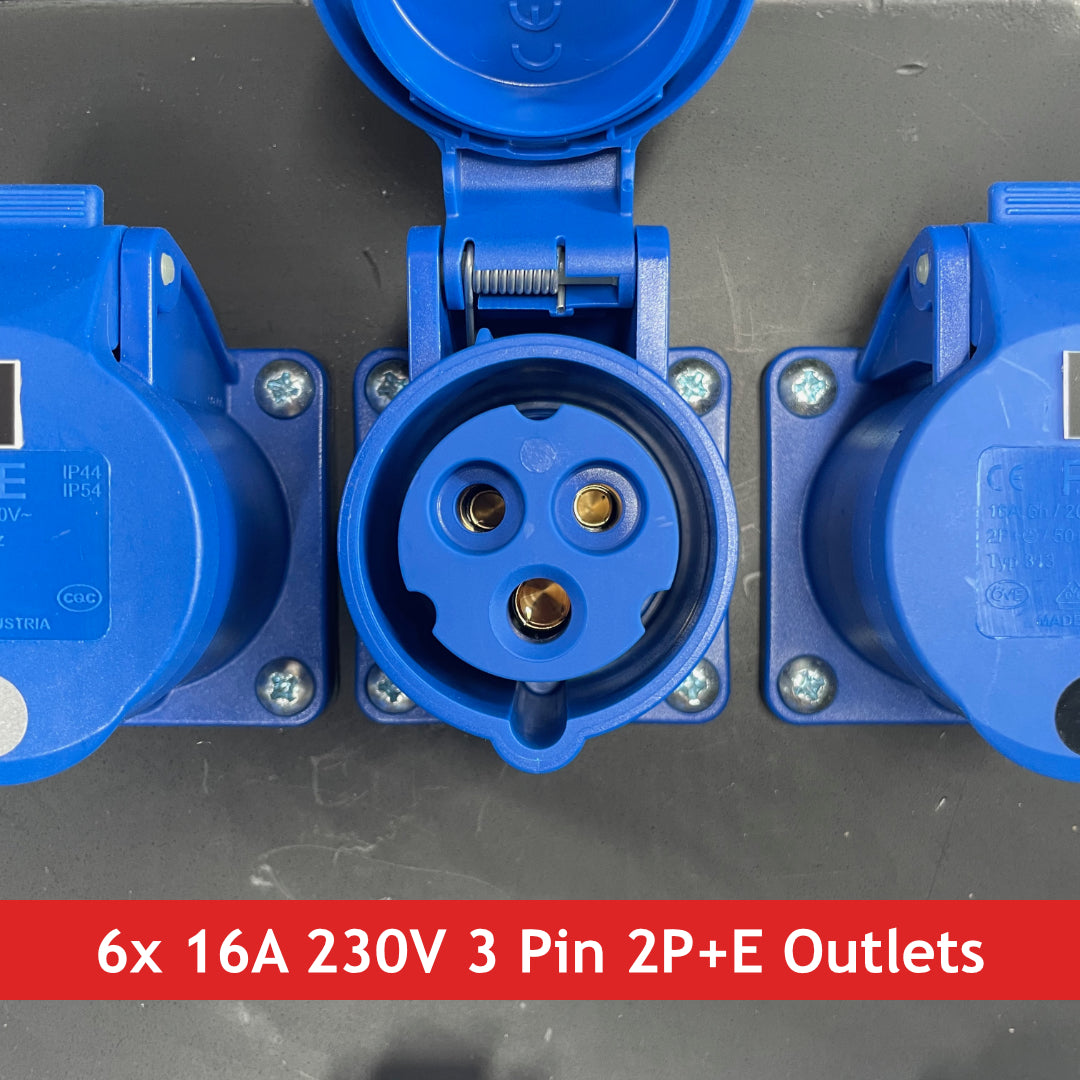

Outputs: 3 x 32A 230V 3 Pin 2P+E and 6 x 16A 230V 3 Pin 2P+E
Protection: 3 x 32A C type RCBO (one per 32A output), 6 x 16A C type RCBO (one per 16A output).
IP Rating: IP44 (Splashproof - suitable for temporary outdoor use)
MPN: A80
