Nexans Titanex 3G6 H07RN-F 6mm² 3 Core Rubber Cable - PER METRE

Nexans Titanex 3G6 H07RN-F 6mm² 3 Core Rubber Cable - PER METRE

Part No: Part No: 3X6TITANEX90

Brand: Nexans



LEAD TIME:

✔ In stock!

🚚 Next working day delivery available!

✔ -797 in stock, additional units available to back order.

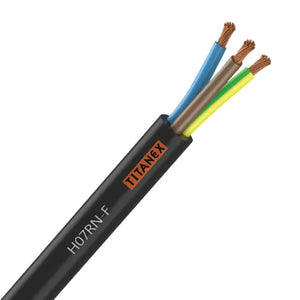

Nexans Titanex 3G6 H07RN-F 6mm² 3 Core Heavy Duty Rubber Cable, priced per metre.

Supplied loose off the reel, maximum of 75 metres in one continuous length for parcel delivery. For example an order of 100 metres will be supplied as a 75 metre and a 25 metre length unless otherwise specified.

For larger drums and bulk quantities, please enquire for a quote.

TITANEX® H07RN-F cables with EPR rubber insulation and rubber sheathing offer outstanding mechanical properties to meet your most varied requirements. No matter what the installation conditions are, whether indoors or outdoors, in cramped and hazardous environments or in the presence of oils and chemicals, TITANEX® combines strengh and flexibility to meet all your requirements.

For more than 50 years the TITANEX® cables have been recognized and are the guarantee of reliable installations in industrial environments (factories, contruction sites, ports etc) whether they are fixed or mobile such as for cranes, machines tool connections, motor power supplies and many other applications.

The mechanical qualities of TITANEX® cables also make them suitable for use in event environments, such as festivals, concerts and sport events, where the cable is exposed without protection and can be used several times.

With a flexing endurance up to five times greater than the standard requirements, TITANEX® provides exceptional reliability and durability, even under intensive use. Its superior resistance to repeated handling, frequent coiling and uncoiling, and demanding mechanical conditions helps ensure safe installations while significantly reducing maintenance and cable replacement costs.

Features:

  • Flex resistance up to five times greater than the standard requirements
  • Excellent flexibility
  • Excellent crush resistance
  • Good resistance to chemicals, oils and vibrations

Specifications:

  • Number of Cores: 3
  • Conductor Cross-Section: 6.0 mm²
  • Maximum Outside Diameter: Approx 18.0 mm
  • Minimum Outside Diameter: Approx 14.1 mm
  • Approximate Weight: 346 kg/km
  • Maximum Open Air Current: 63 A
  • Suggested Max Current: 32 A
  • Voltage Drop (Single Phase): 7.0 V/A.km
  • MPN: 3X6TITANEX90
