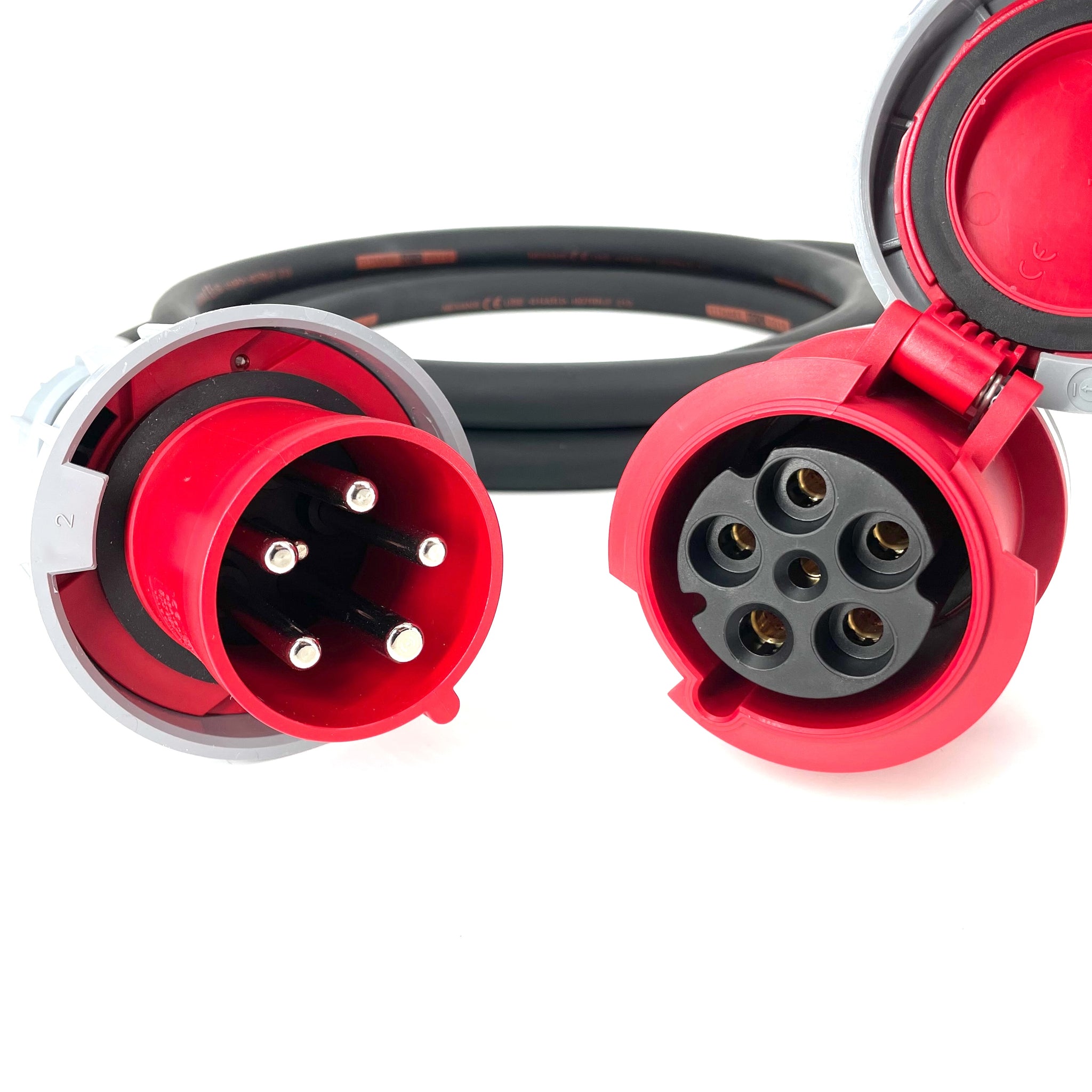

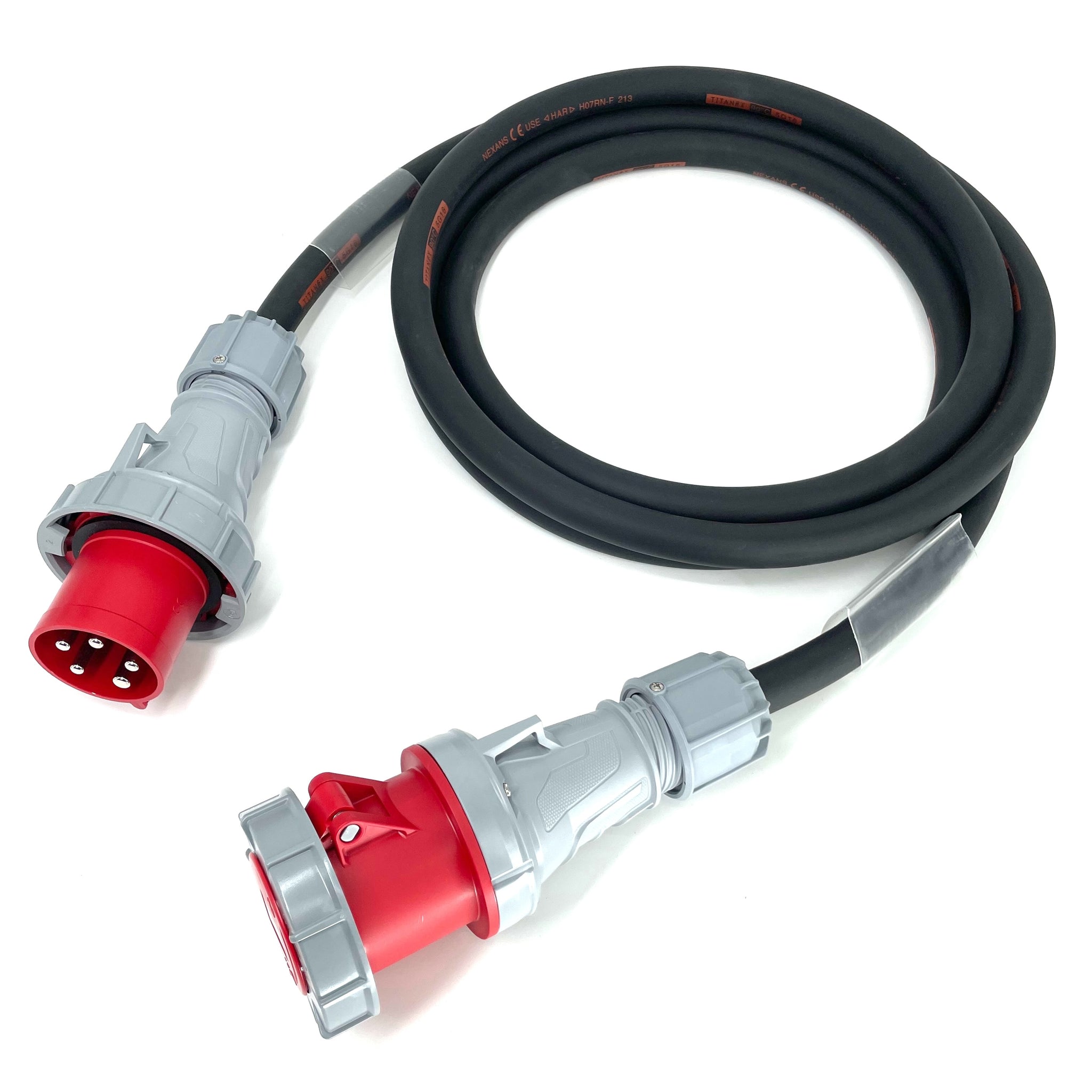

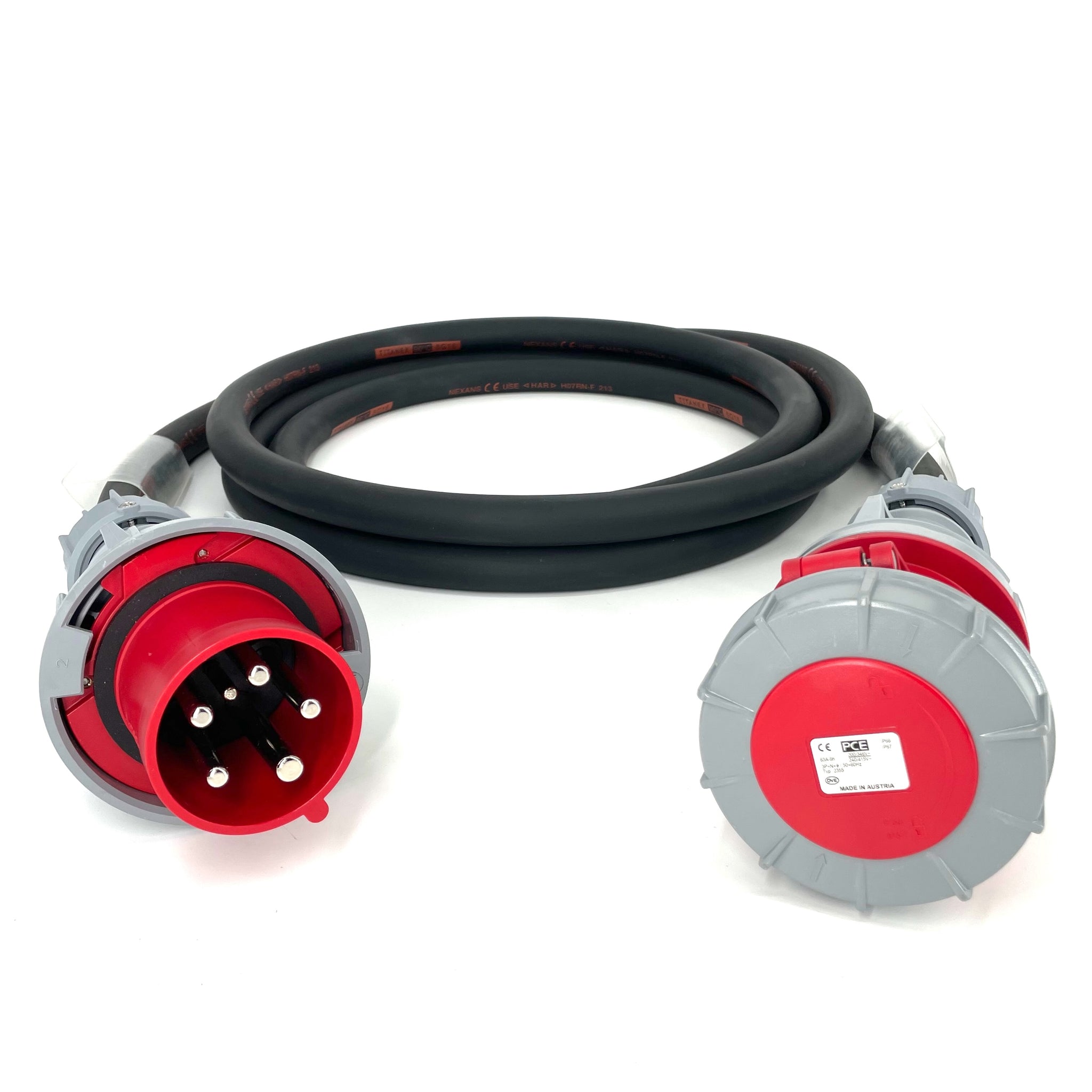

63 Amp 5 Pin 415V IP67 16mm² H07RN-F Extension Cable

20+ metre lengths require pallet delivery, please see our delivery page for more info.

IP67 63 Amp Three Phase 380V/400V/415V 5 Pin Heavy Duty Extension Leads

16mm² H07RN-F Rubber Cable

Assembled in the UK to the highest standard, these cables are suitable for all heavy duty domestic, industrial, machinery, engineering, welding, events, stage, marquee, catering, commercial, site power, workshop, and power distribution applications.

Made with the highest quality Nexans Titanex H07RN-F rubber cable, offering exceptional strength and flexibility even in the most demanding environments.

IP67 waterproof rating for outdoor use. See our IP ratings page for more information.

Fully tested, and supplied with 100mm of clear 2:1 heatshrink at each end for custom ID marking.

Features:

• Heavy Duty Extension Lead: Heavy duty 63A 415V 5 pin 3 phase extension lead for industrial and engineering applications, as well as event power distribution solutions
• Power Load Capacity: Suitable for continuous use up to 43.5kW 3 phase
• Premium Cable and Connector Construction: Made with high quality Nexans Titanex 16mm² H07RN-F rubber cable and PCE IEC 60309 Red 3P+N+E IP67 rated commando connectors
• Compatibility Notice: Not compatible with 32A 415V 5 pin supplies and appliances, check your connections for indication of 63A ratings
• UK Assembly and Compliance Standards: Assembled in the UK to the highest standard, all leads are tested and serial numbered. Chemical, oil, and UV resistant. BS EN60309, UKCA, CE, and RoHS compliant
• Durable Material Properties: Features chemical, oil, and UV resistant construction with exceptional strength and flexibility for demanding environments including domestic, industrial, engineering, welding, event, marquee, catering, commercial, site power, and workshop applications
• Weather Resistant Design: Rated IP67 waterproof making it suitable for long term use outdoors in various weather conditions while maintaining reliable power distribution

Specifications:

• Cable: Nexans Titanex 5G16 16mm² 5 Core H07RN-F Rubber

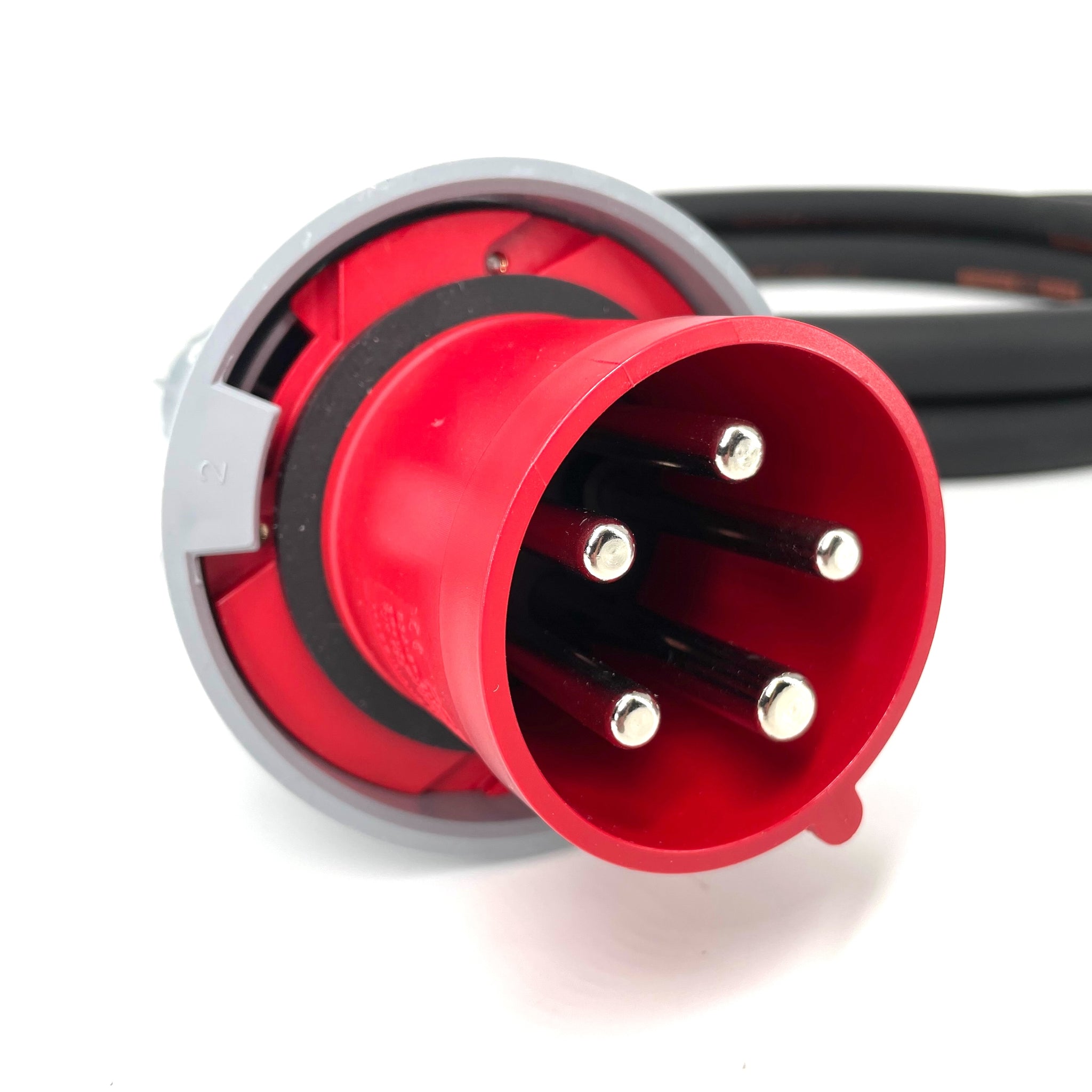

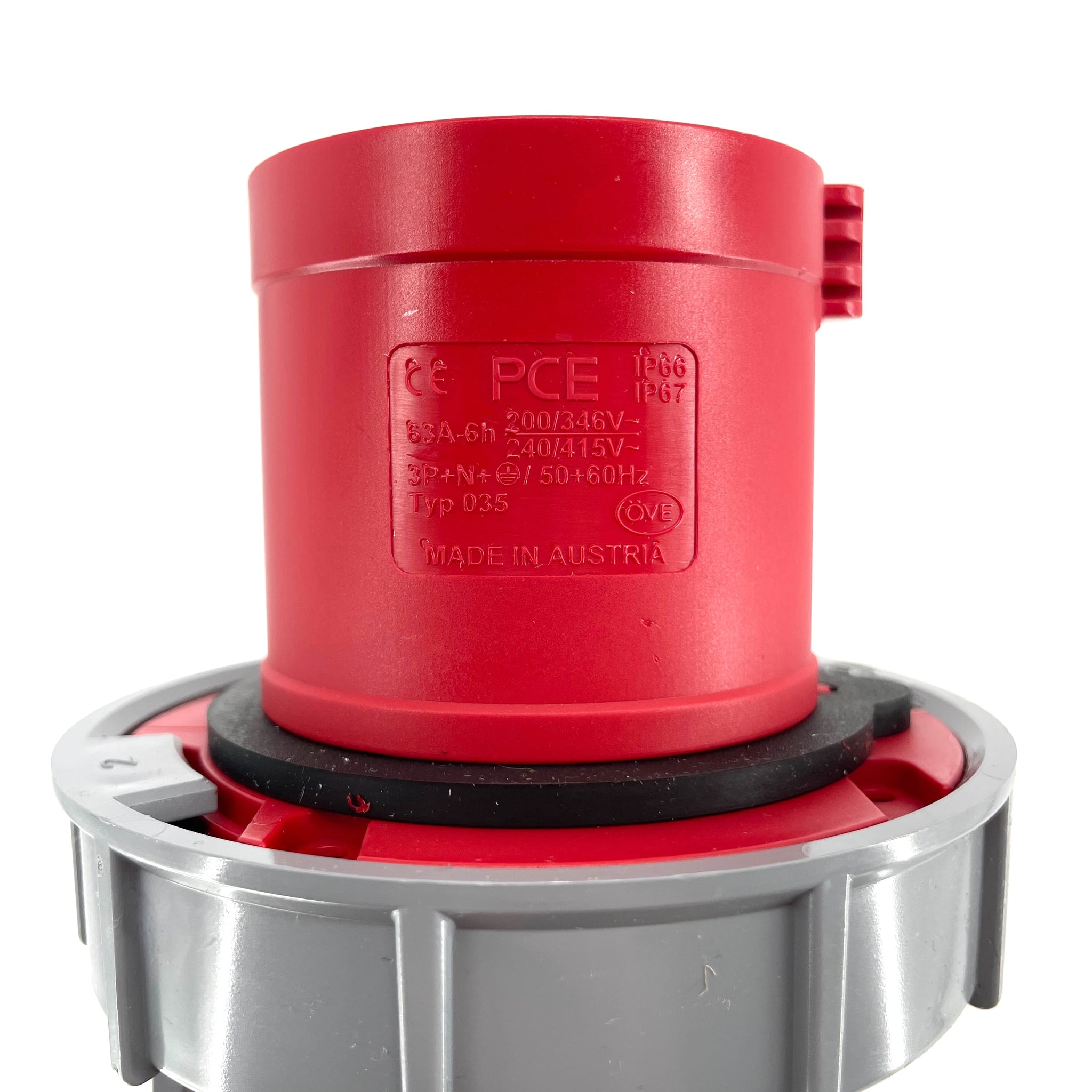

• Plug: PCE 035-6 400V 63A 3P+N+E IP67 Red Plug (Male)

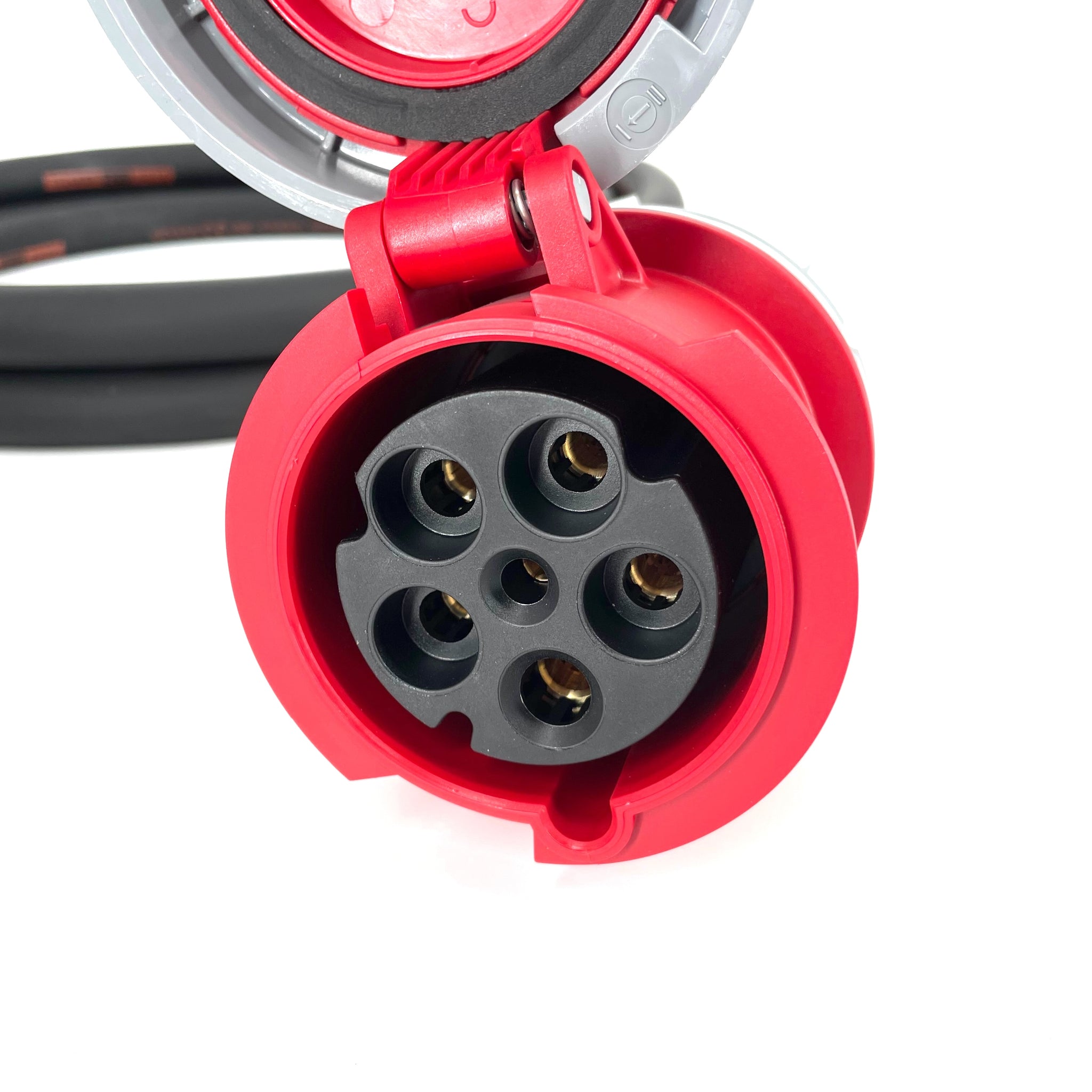

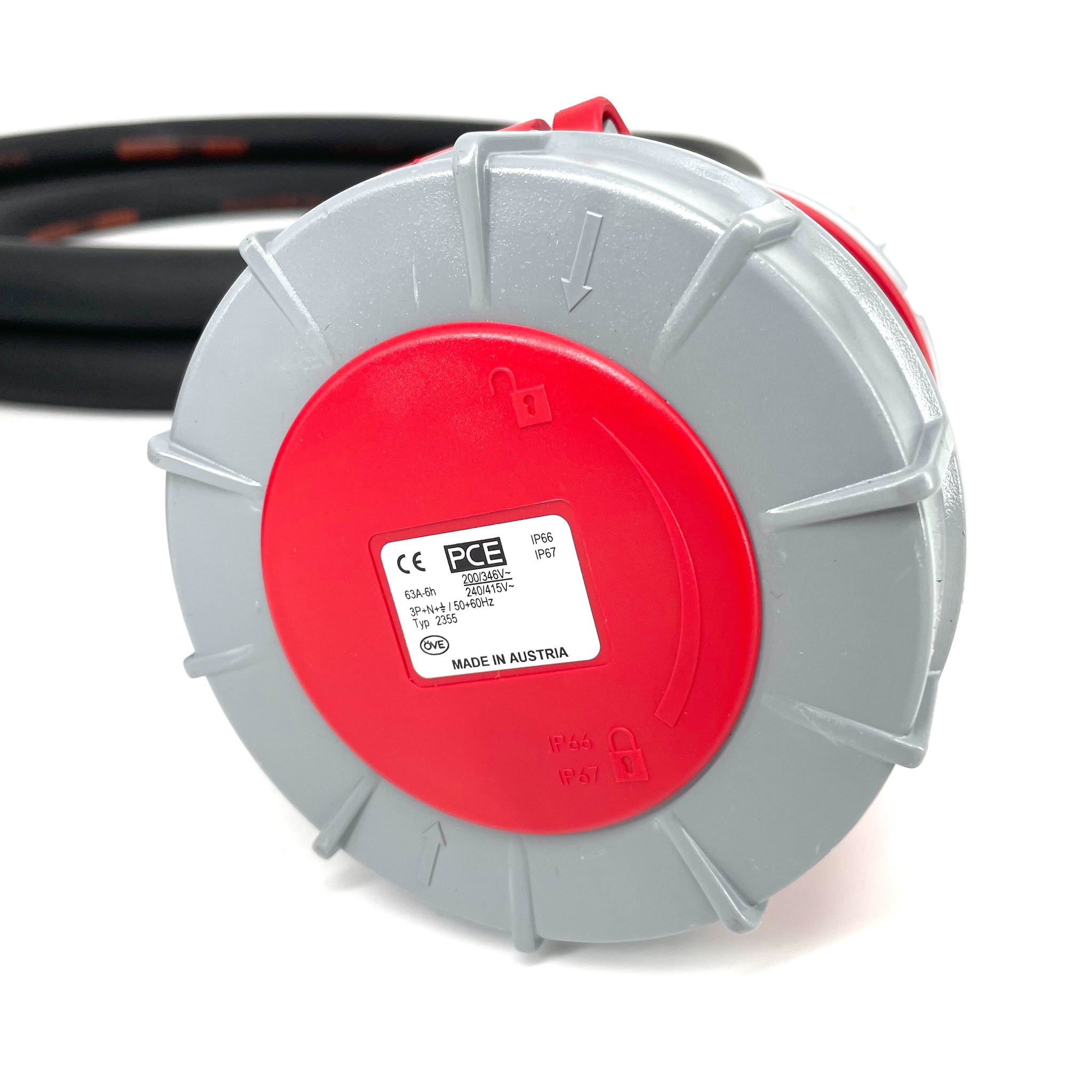

• Socket: PCE 2355-6 400V 63A 3P+N+E IP67 Red Socket (Female)
• Terminations: Ferruled
• Heatshrink: 2 x 100mm Clear 2:1 Heatshrink
• Voltage: 380-415V
• Max Current: 63A
• IP Rating: IP67
• MPN: 63A-5P-EXT-16-RED
