32 Amp 5 Pin 400V IP44 6mm² H07RN-F Extension Lead

Part No: Part No: 32A-3PH-EXT-RED-2M

Brand: Cinemattag Productions

-15 in stock! Need more? Please enquire for current lead time.

50 metre lengths require pallet delivery, please see our delivery page for more info.

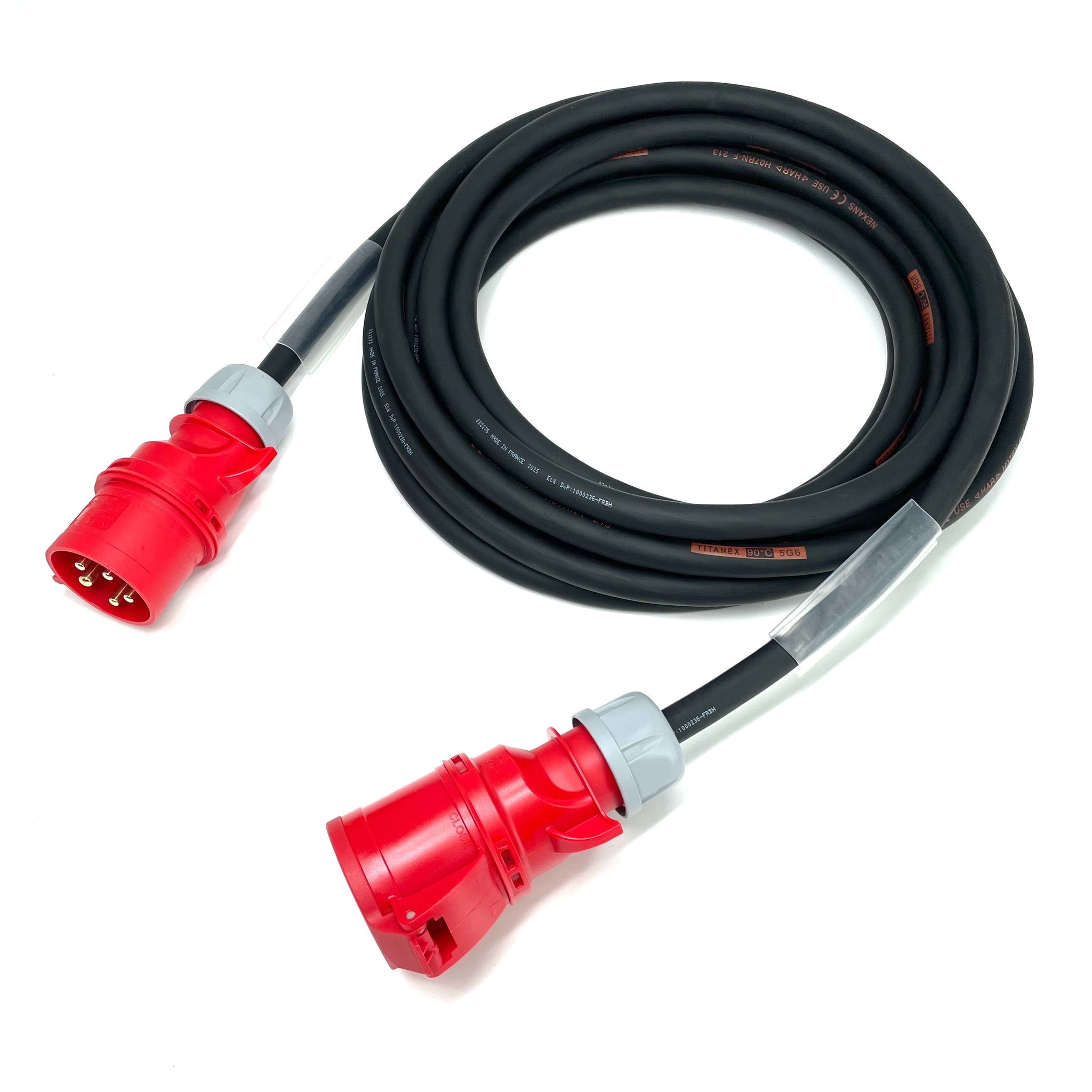

IP44 32 Amp Three Phase 380V/400V/415V 5 Pin Heavy Duty Extension Leads.


  • Cable: Nexans Titanex 5G6 6mm² 5 Core H07RN-F Rubber

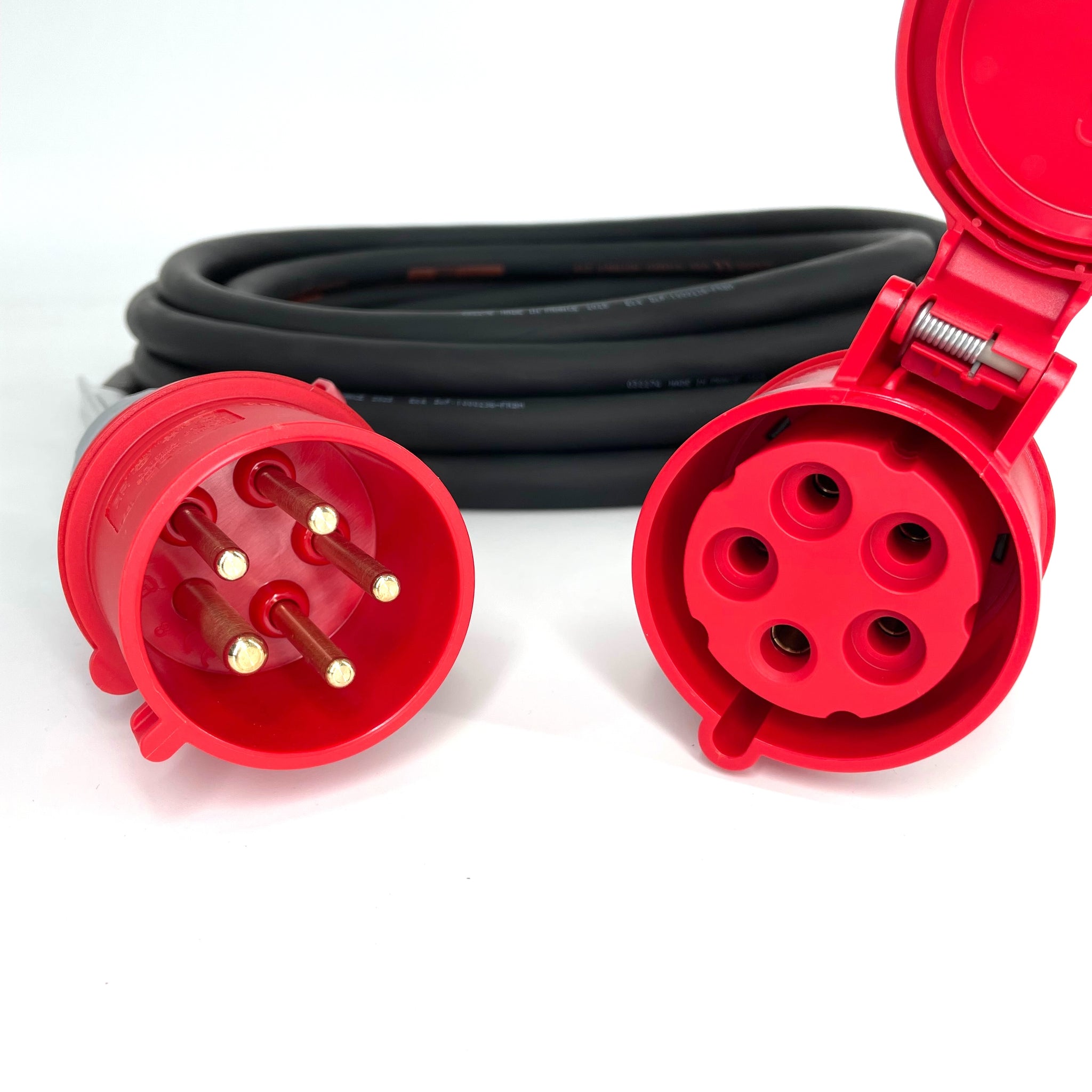

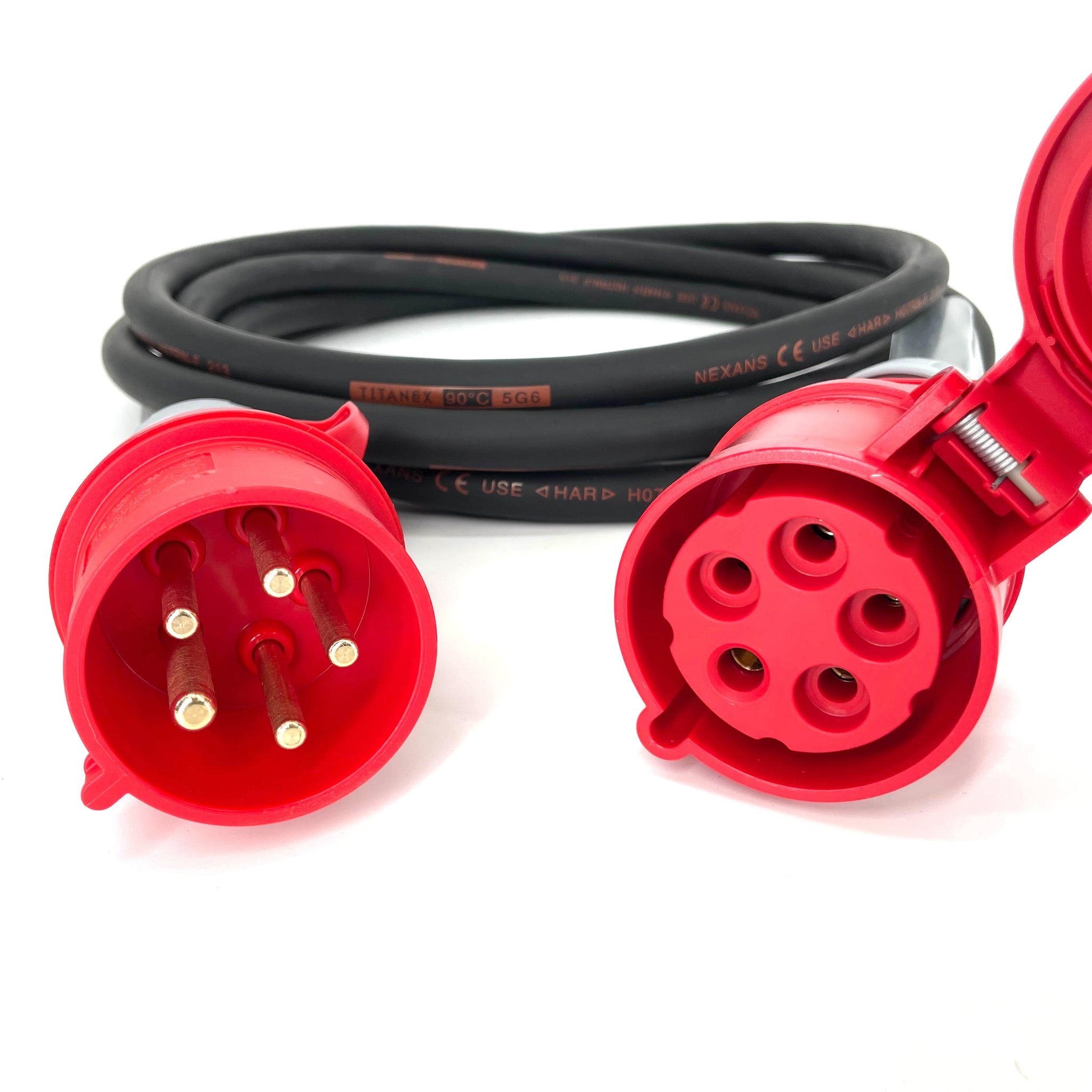

  • Plug: PCE 025-6 400V 32A 3P+N+E IP44 Red Plug (Male) - External Diameter = 63mm
  • Socket: PCE 225-6 400V 32A 3P+N+E IP44 Red Socket (Female) - External Diameter = 71mm
  • Terminations: Ferruled
  • Heatshrink: 2 x 100mm Clear 2:1 Heatshrink
  • Voltage: 380-415V
  • Max Current: 32A
  • IP Rating: IP44 (IP67 version also available)
  • PAT Tested
  • MPN: 32A-3PH-EXT-RED


Assembled in the UK to the highest standard, these cables are suitable for all heavy duty industrial, engineering, heater, event, marquee, catering, commercial, and power distribution applications.

Made with the highest quality Nexans Titanex 6mm² 5 Core H07RN-F tough rubber cable, offering exceptional strength and flexibility even in the most demanding environments.

Robust and durable PCE Red 32A 3P+N+E connectors.

IP rated to IP44 splashproof - Ideal for temporary use outside.

Supplied with 100mm of clear 2:1 heatshrink at each end for custom ID marking.

PAT tested.

Need a different length? Just enquire and we can provide a quotation for your requirements.
