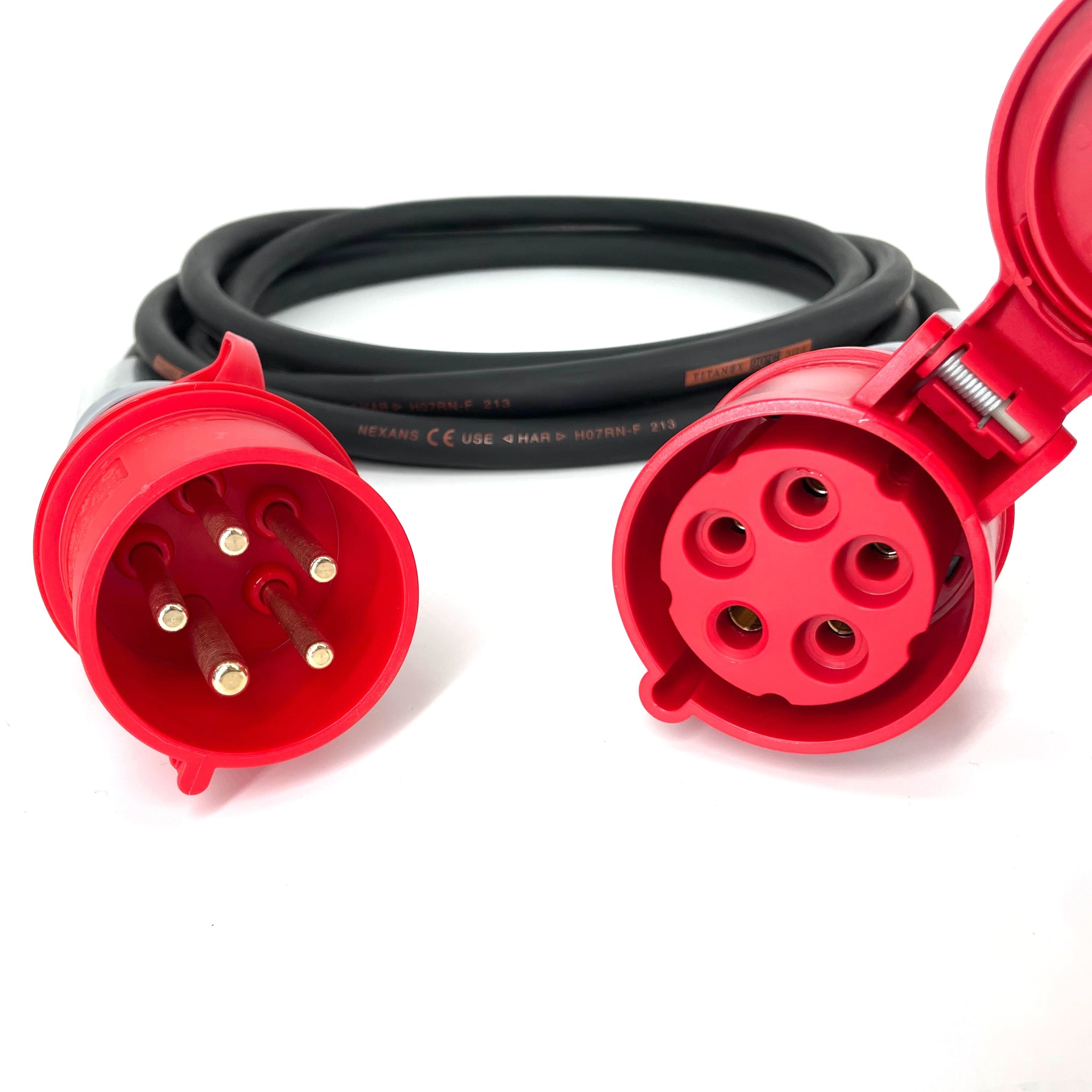

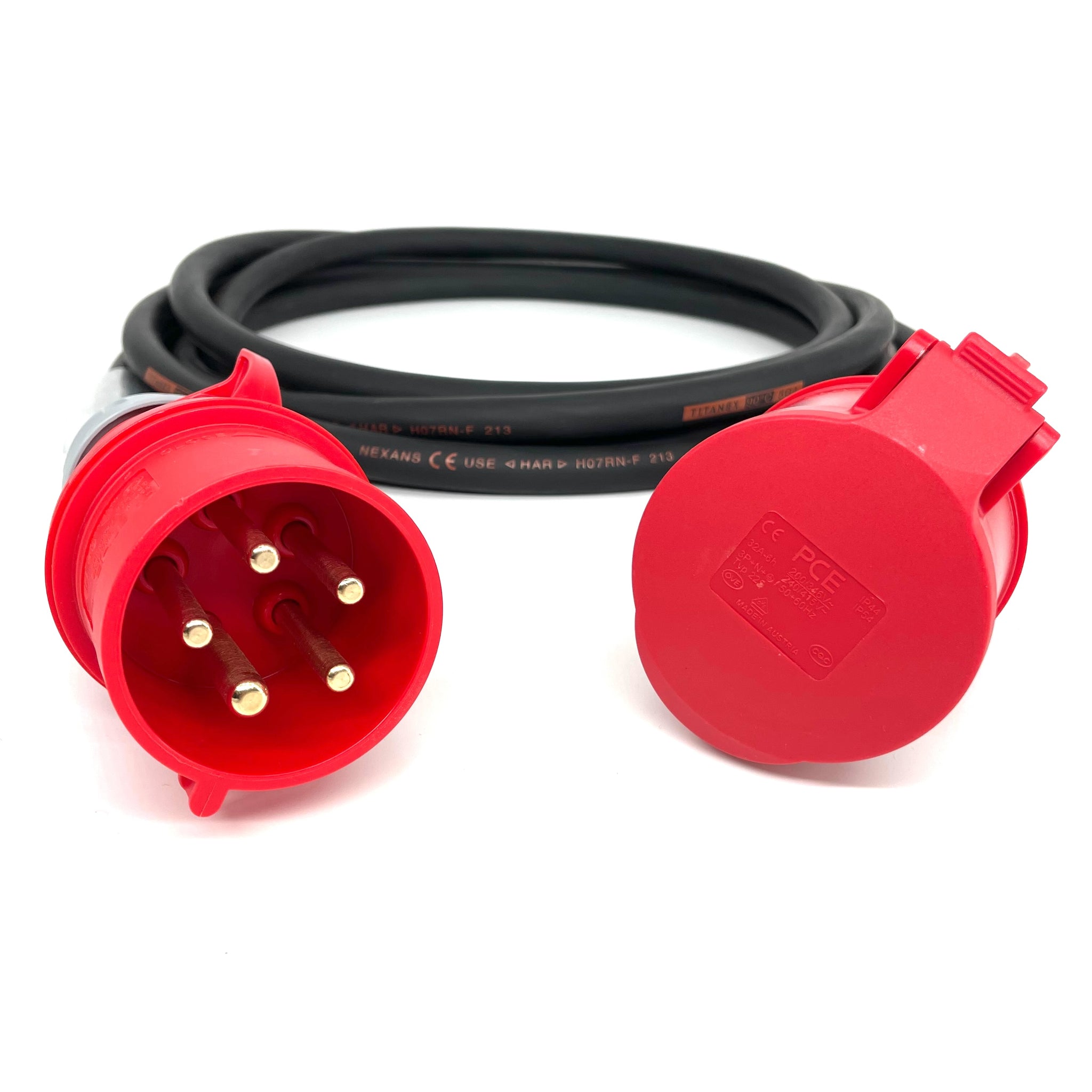

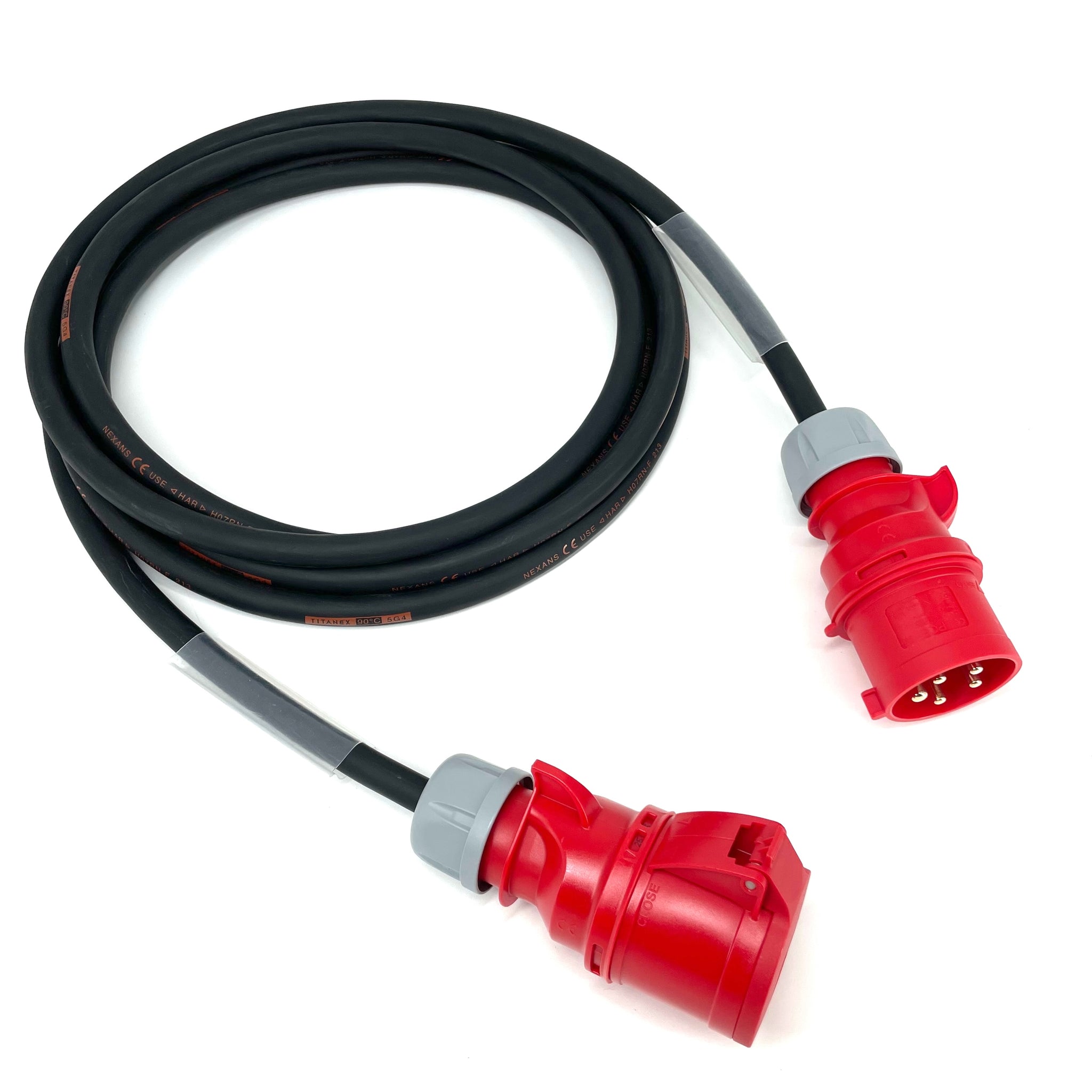

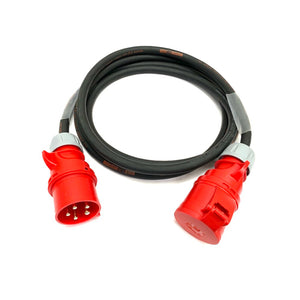

32 Amp 5 Pin 415V IP44 4mm² H07RN-F Extension Lead

IP44 32 Amp Three Phase 380V/400V/415V 5 Pin Heavy Duty Extension Leads

4mm² H07RN-F Rubber Cable

Assembled in the UK to the highest standard, these cables are suitable for all heavy duty domestic, industrial, machinery, engineering, welding, events, stage, marquee, catering, commercial, site power, workshop, and power distribution applications.

Made with the highest quality Nexans Titanex H07RN-F rubber cable, offering exceptional strength and flexibility even in the most demanding environments.

IP44 waterproof rating for outdoor use. See our IP ratings page for more information.

Fully tested, and supplied with 100mm of clear 2:1 heatshrink at each end for custom ID marking.

Features:

• Heavy Duty Extension Lead: Heavy duty 32A 415V 5 pin 3 phase extension lead for industrial and engineering applications, as well as event power distribution solutions
• Power Load Capacity: Suitable for use up to 22kW 3 phase, however for continuous use at high loads we recommend the 6mm² version of this cable
• Premium Cable and Connector Construction: Made with high quality Nexans Titanex 6mm² H07RN-F rubber cable and PCE IEC 60309 Red 3P+N+E IP44 rated commando connectors
• Compatibility Notice: Not compatible with 16A 415V 5 pin supplies and appliances, check your connections for indication of 32A ratings
• UK Assembly and Compliance Standards: Assembled in the UK to the highest standard, all leads are tested and serial numbered. Chemical, oil, and UV resistant. BS EN60309, UKCA, CE, and RoHS compliant
• Durable Material Properties: Features chemical, oil, and UV resistant construction with exceptional strength and flexibility for demanding environments including domestic, industrial, engineering, welding, event, marquee, catering, commercial, site power, and workshop applications
• Weather Resistant Design: Rated IP44 splashproof making it suitable for temporary use outdoors in various weather conditions while maintaining reliable power distribution

Specifications:

• Cable: Nexans Titanex 5G4 4mm² 5 Core H07RN-F Rubber

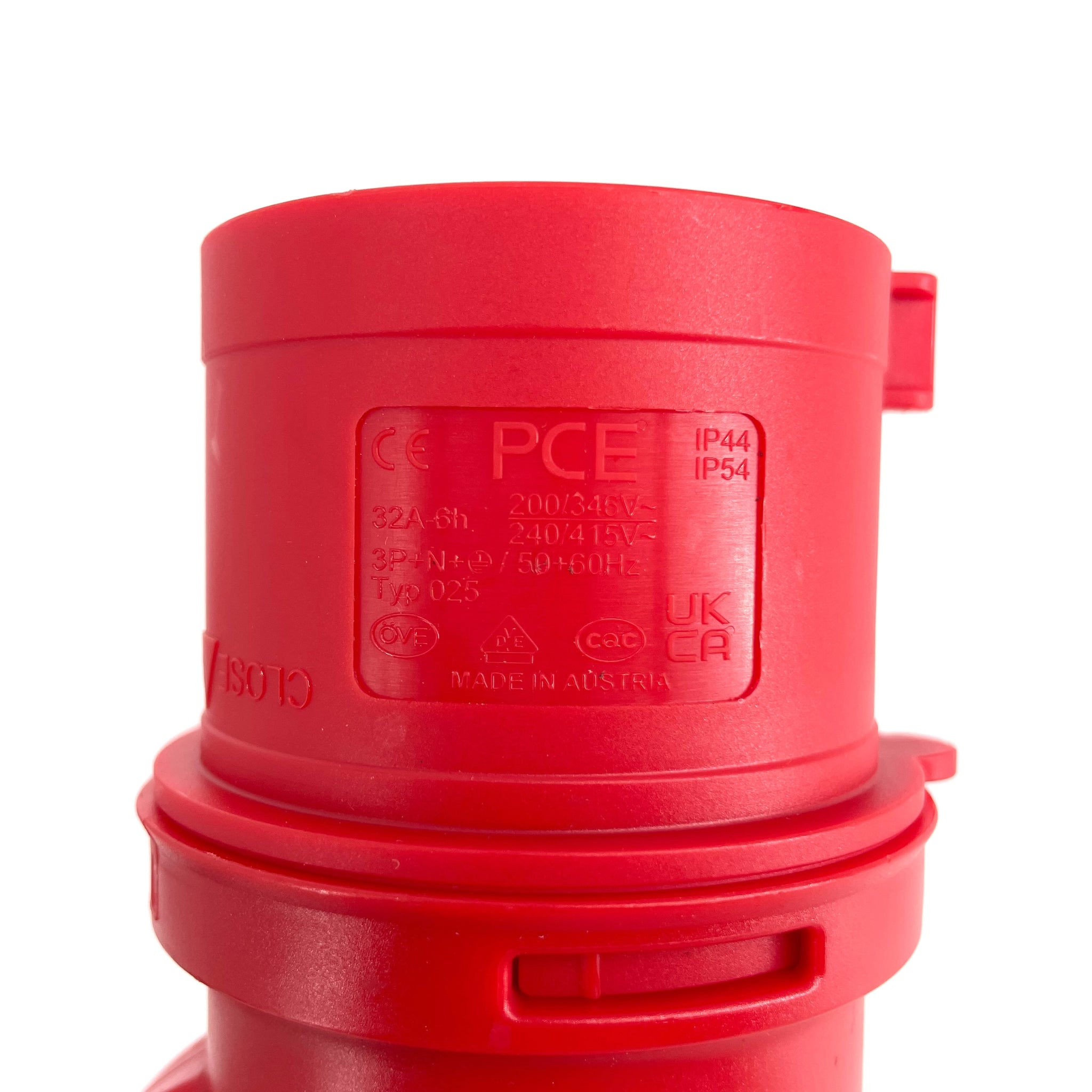

• Plug: PCE 025-6 400V 32A 3P+N+E IP44 Red Plug (Male) - External Diameter = 63mm

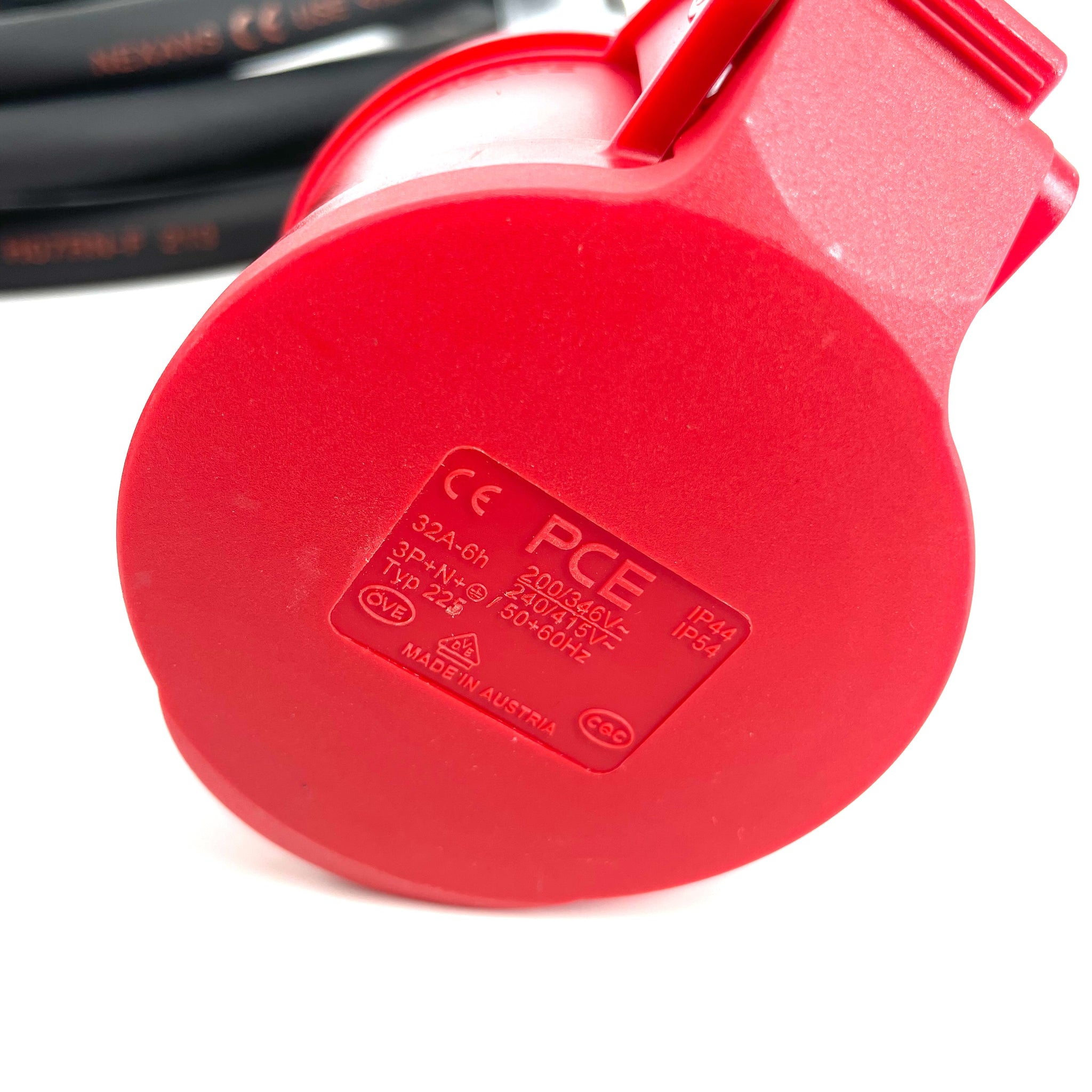

• Socket: PCE 225-6 400V 32A 3P+N+E IP44 Red Socket (Female) - External Diameter = 71mm
• Terminations: Ferruled
• Heatshrink: 2 x 100mm Clear 2:1 Heatshrink
• Voltage: 380-415V
• Max Current: 25A
• IP Rating: IP44 (IP67 version also available)
• MPN: 32A-5P-EXT-4-RED
